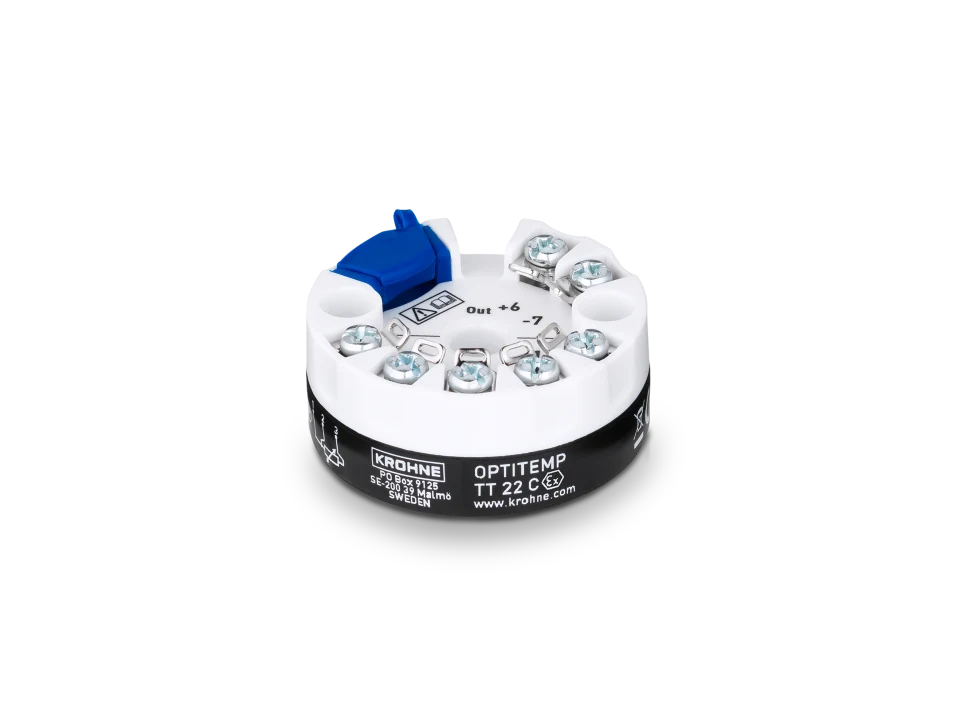

KROHNE OPTITEMP TT 22 C

The OPTITEMP TT 22 C is a programmable 2-wire head-mounted temperature transmitter. It works with a Pt100 RTD element in 3-wire configuration. The device features a robust design and excellent performance even under demanding conditions such as varying ambient temperatures, vibrations, moisture and radio interferences. It provides a temperature linear current output (4…20 mA). The temperature transmitter is approved for use in hazardous areas

The OPTITEMP TT 22 Ccan be easily configured from a PC using the ConSoft software with configuration kit ICON. Thanks to the user-friendly interface, parameters like measurement range or failure indication can be set or re-set within seconds. Using PC configuration, no calibration is required. The RTD transmitter is designed for installation in a “B connection head” or larger. As an alternative the OPTITEMP TT 22 C can also be mounted on a DIN rail using an optional rail mounting kit. A dedicated rail-mounted version for DIN rails is available with the OPTITEMP TT 22 R.
