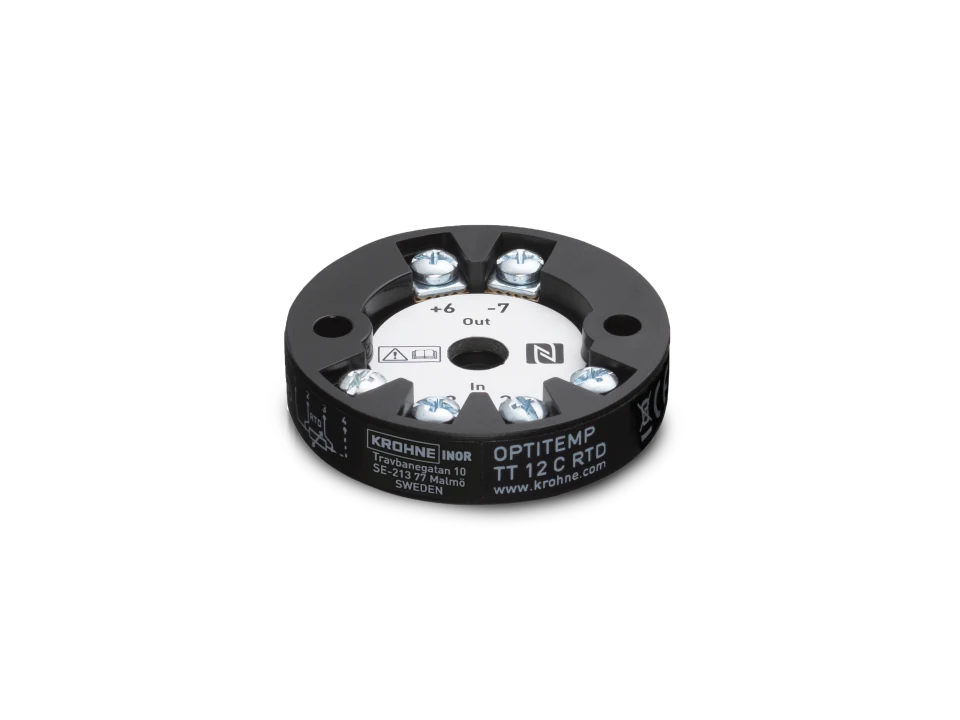

KROHNE OPTITEMP TT 12 C

The OPTITEMP TT 12 C is a universal programmable 2-wire head-mounted temperature transmitter for Pt100 and Pt1000 RTD elements or thermocouple (TC) elements. The cost-effective transmitter offers reliable temperature measurement in all basic applications and is particularly suitable for use in the food and beverage industry and in HVAC installations. The OPTITEMP TT 12 C features an extremely compact design with a height of only 10.5 mm, offering ease of installation into all DIN B connection heads. Thanks to its rugged design, it withstands external influences such as shocks and vibrations up to 10 g.

When it comes to transmitter configuration, there is no need for expensive configuration tools or wired workstations. The OPTITEMP TT 12 C is easily configured wirelessly via NFC with any smartphone or tablet computer using the OPTICHECK Temperature Mobile app. The temperature transmitter provides a temperature linear current output (4…20 mA). As an alternative it can also be mounted on a DIN rail using an optional rail mounting kit. A dedicated rail-mounted version for DIN rails is available with the OPTITEMP TT 12 R.
