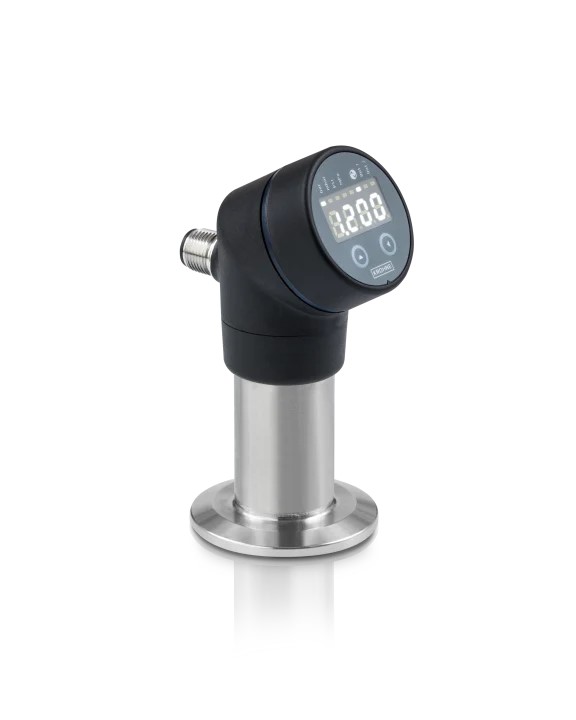

KROHNE OPTIBAR PSM 2010

The OPTIBAR PSM 2010 is an electronic pressure switch for applications in the food and beverage industry as well as the pharmaceutical industry. Its hygienic construction comes with a fully welded front-flush diaphragm to meet the most stringent industrial requirements in terms of crevice-free installation. The pressure switch provides long-term stable absolute or gauge pressure measurement of liquids and gases as well as hydrostatic level measurement. Due to its advanced digital compensation, the OPTIBAR PSM 2010 offers excellent temperature stability even during SIP/CIP cleaning cycles.

The OPTIBAR PSM 2010 offers multiple output options in one single configuration. Standard IO is a PNP/NPN switching output and IO-Link. On the secondary output, analogue 4…20 mA / 0…10 V or PNP/NPN switching are selectable. The IO-Link communication provides operators with sensor and application data for smarter process automation. Process data, status reports, device configurations can be changed easily with the control system. Advanced diagnostic information such as operating temperature, pressure spike counter and operating hour counter help to establish a more predictable maintenance concept.
